HCS Cone Crusher
Introduction of HCS Cone Crusher
HCS series single cylinder cone crusher with hydraulic-driven system is a kind of new type high efficient crushing equipment which is developed by Clirik engineers through over 20 year's effort of design, manufacture, sale, and after-sale service in crushing industries. It is widely used in primary crushing, secondary crushing, tertiary crushing and fine crushing.

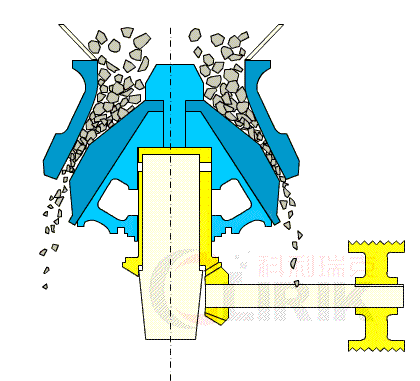

Image of HCS Cone Crusher:
Application of HCS Cone Crusher
HCS series cone crusher is applied to cement mill, mining, building construction, road &bridge construction, railway construction and metallurgy and some other industries. Materials like iron ore, granite, limestone, quartzite, sandstone, cobblestone and some others are easily crushed by cone crusher
Features of HCS Cone Crusher
1. High production capacity and excellent grain type of output product
2. Special bearing design for much more carrying capacity and longer life
3. Enhanced body design makes it quite reliability.
4. Easy to adjust discharging opening and to maintain by using optimized hydraulic lubrication station
Technical data of HCS Cone Crusher
|
Model |
Movable Cone Diameter (mm) |
Chamber Style |
Max Feeding(mm) |
Discharge Opening(mm) |
Capacity(t/h) |
Power(kw) |
Machine Size(mm) |
|
HCS100 |
790 |
EC |
135 |
10-32 |
46-128 |
90 |
1550×1575×1965 |
|
C |
90 |
10-25 |
43-118 |
|
M |
65 |
8-16 |
36-76 |
|
MF |
50 |
6-13 |
29-68 |
|
F |
35 |
4-10 |
27-57 |
|
EF |
28 |
6 |
30-40 |
|
HCS160 |
956 |
EC |
180 |
13-38 |
69-215 |
160 |
1875×1920×2400 |
|
C |
145 |
13-32 |
65-197 |
|
MC |
115 |
10-25 |
60-180 |
|
M |
90 |
10-22 |
60-160 |
|
MF |
75 |
8-19 |
61-125 |
|
F |
50 |
6-19 |
45-105 |
|
EF |
35 |
6 |
70-90 |
|
HCS250 |
1150 |
EC |
215 |
16-44 |
110-380 |
250 |
2100×2320×2780 |
|
C |
175 |
13-38 |
100-385 |
|
MC |
140 |
13-32 |
95-325 |
|
M |
110 |
13-25 |
115-335 |
|
MF |
85 |
10-22 |
90-280 |
|
F |
70 |
8-19 |
90-235 |
|
EF |
38 |
8 |
100-125 |
|
HCS315 |
1408 |
EC |
275 |
16-44 |
177-660 |
315 |
2380×2735×3265 |
|
CX |
245 |
16-38 |
170-650 |
|
C |
215 |
16-38 |
170-640 |
|
MC |
175 |
16-32 |
160-552 |
|
M |
135 |
16-32 |
195-500 |
|
MF |
115 |
13-32 |
190-450 |
|
F |
85 |
13-25 |
195-400 |
|
EF |
65 |
13-22 |
210-300 |
