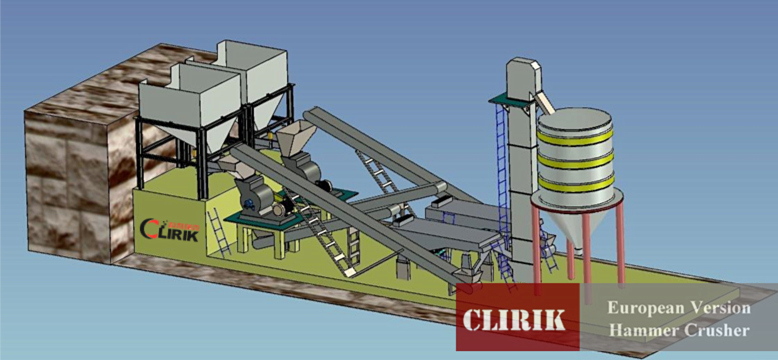

Hammer mill design:
Hammer mill model:
There are three types of Shanghai CLIRIK
Hammer mill, they are PC4008-75, PC40012-90, and PC40015-132.The finished production fineness can be reached under 3 mm. The capacity (ton/hour) ranges from 10T/H to 100T/H.
|
Model |
PC4008-75 |
PC4012-90 |
PC4015-132 |
|
Rotor diameter (mm) |
750 |
900 |
1150 |
|
Rotor length(mm) |
800 |
1200 |
1500 |
|
Rotor speed (r/min) |
800-1000 |
800-1000 |
550-800 |
|
Feed head size(mm) |
320×930 |
400×1200 |
500×1500 |
|
Max feed size(mm) |
< 30 |
< 40 |
< 50 |
|
Fineness (mm) |
0-3 |
0-3 |
0-8 |
|
Processing (t/h) |
15-30 |
30-60 |
60-100 |
|
Motor Power(KW) |
75 |
90 |
132 |
|
Dimensions (L×W×H/mm) |
2130×1665×1610 |
2840×2100×2020 |
3720×2650×2540 |
