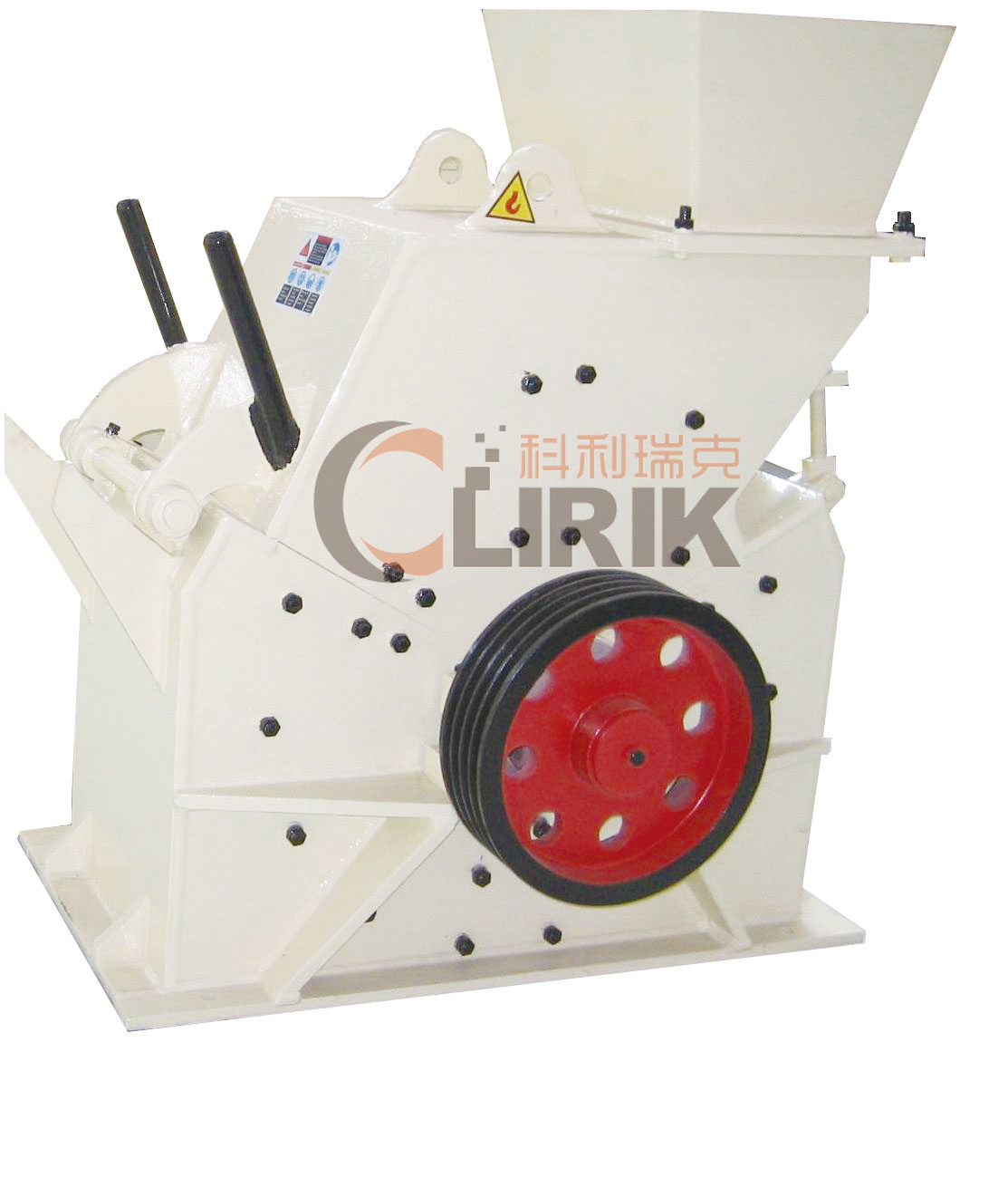

Rough hammer mill is equipment using high-speed rotary hammers to crush materials,mainly applied to the industries of metallurgy,mining,chemistry,cement,construction,refractory materials and ceramics.It can crush hard and soft ores into medium or small size,such as barite,limestone,gypsum,terrazzo,coal,slag,and up to 100 different kinds.



The features of rough hammer mill:

1.High capacity,high crushing ratio

2.Uniform particle size,simple structure

3.Low investment,easy management and maintenance



The working principle of rough hammer mill:

    Rough hammer mill mainly consisit of frame,rotor,support iron and grate bars.The frame is divided into two parts:upper part and lower part which are welded by steel plates after being cut.Liners made of high manganese steels within the frame can be replaced after being worn out.The rotors consisit of the turn plate,pin shafts,and hammers which are grouped regularly in the main shaft.The motor drives the rotors to rotate quickly in the crushing cavity,and hammers spread outward as a result of centrifugal force from the rotation of the rotors.Large materials entering the crusher through the feed inlet are stricken,impacted,cut and ground by the high-speed hammers to small size.Qualified material crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size.The size of the final product can be adjusted by changing the grate bars.The gap between the rotors and the grate bars can be also adjusted according to different requirement.



If you are interested in rough hammer mill,or have any questions.Please do not hesitate to contact us.
