Application of Jaw Crusher:
Jaw crusher is widely applied in mining, smelting, construction, road, railway, water conservation and chemical industry etc. the compressive strength of crushing less than 320 million mpa. which is often applied in quarry production line, tone factory. it has the first class of crushing in production line. so it has the irreplaceable influence. at present. jaw crusher included deep cavity jaw crusher and euro mandibles crusher.
The Type of Jaw Crusher:
Jaw crusher is mainly used for coarse crusher and intermediate crusher in some fields .such as mining, construction materials, infrastructure etc. it is divided into large medium small three types according to its feeding hole’s size of the width. the feeding hole’s width is greater than 600mm for big machine. feeding port is 300-600mm for medium machine, feeding mouth is less than 300mm for small machine.
The shaking mode of jaw crusher is different according to its sewing jaw. it can be divided into three types. simple oscillating jaw crusher, complex oscillating jaw crusher and comprehensive oscillating jaw crusher.

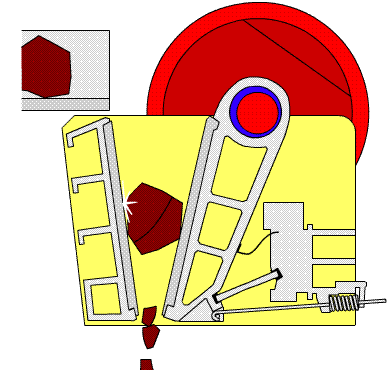

Working principle of Jaw Crusher:
The working portions of Jaw crusher is made up of two pieces of lips. one is the stationary lip, fastening on the anterior wall of engine body vertically. the other is sewing lip. on the tilt, with the stationary lip formed crushing cavity which top is larger than its base. Sewing jaw slabs with stationary jaw do periodicity reciprocating motion. sometimes separately, sometimes near. when they are separate, materials entered into the crushing cavity. the finished product discharging from the bottom. when they are approaching.making the materials crushing because of squeezing , bending and separating which is between two pieces of jaw lips.
The Specifications of Jaw Crusher:
|
Type |
Feed opening size(mm) |
Feeding size(mm) |
Output open range(mm) |
Capacity(t/h) |
Powder(kw) |
Dimension(L*W*H)mm |
|
PE150*250 |
150*250 |
125 |
10～40 |
1～5 |
5.5～7.5 |
922*745*933 |
|
PE200*350 |
200*350 |
125 |
15～40 |
5～16 |
7.5～11 |
1056*1142*1220 |
|
PE250*400 |
250*400 |
210 |
20～60 |
5～20 |
15～18.5 |
1430*1310*1340 |
|
PE400*600 |
400*600 |
350 |
40～100 |
15～60 |
30～37 |
1700*1732*1653 |
|
PE500*750 |
500*750 |
425 |
50～100 |
40～100 |
45～55 |
2035*1921*2000 |
|
PE600*900 |
600*900 |
480 |
65～160 |
60～140 |
55～75 |
2290*2206*2370 |
|
PEX250*400 |
250*400 |
210 |
≤12 |
5～10 |
15～18.5 |
1430*1310*1340 |
|
PEX250*1000 |
250*1000 |
210 |
25～60 |
16～50 |
30～37 |
1530*1992*1380 |
|
PEX250*1200 |
250*1200 |
210 |
25～60 |
20～60 |
37～45 |
2192*1605*1415 |
|
PEX300*1300 |
300*1300 |
250 |
25～105 |
20～90 |
75 |
2720*1950*1600 |
