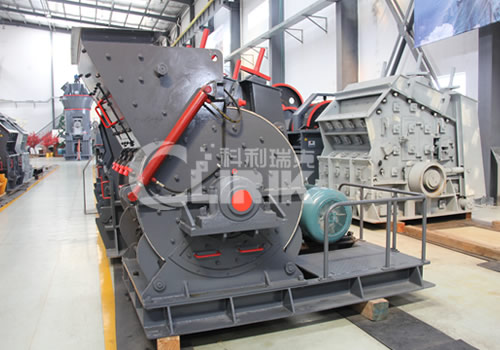

The description of coarse hammer mill：

European Version Coarse hammer mill is engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into coarse powder and small particles, it is widely used in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries.



Advantages and features of coarse hammer mill:

● High capacity and low power consumption;

● Uniform particle size with high crushing and crushing ratio;

● Simple structure;

● Easy operation; low investment.



The working principle of coarse hammer mill:


European version coarse hammer mill mainly consists of frame, rotor, support iron and grate bars. The frame is divided into two parts: upper part and lower part, which are welded by steel plates after being cut. Liners made of high manganese steels within the frame can be replaced after being worn out. The rotors consist of turn plates, pin shafts, and hammers which are grouped regularly in the main shaft. The main unit drives the main shaft through the motor and triangle belts, which, in turn, rotates the rollers. Large materials entering the crusher through the feed inlet are firstly crushed by the high-speed hammers, and then thrown fiercely to the support iron for further crushing. Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the grate bars. The gap between the rotors and the grate bars can also be adjusted according to different requirement. To avoid the plugging of the crusher, the proportion of water for the crushing materials is no more than 20%.



The technical data of coarse hammer mill:(Main specification)

Type	PC4008-75	PC40012-90	PC40015-132
Rotor Diameter/mm	750	900	1150
Rotor Width/mm	800	1200	1500
Rotor Speed r/min	800-1000	800-1000	550-800
Feed head size/mm	320*930	400*1200	500*1500
Feeding Size/mm	≤50	≤60	≤80
Finished Size/mm	≤3	≤3	≤8
Capacity t/h	10--30	30--60	50--100
Powder/kw	55-75	75-90	110-132
Hammer Number (piece)	18	32	32
Overall Size L*W*H/mm	2310*1665*1610	2840*2100*2020	3720*2650*2540





Note: Any changes of technical data shall not be prior advised.
